Available Colors: Black, Beige
Product Description:

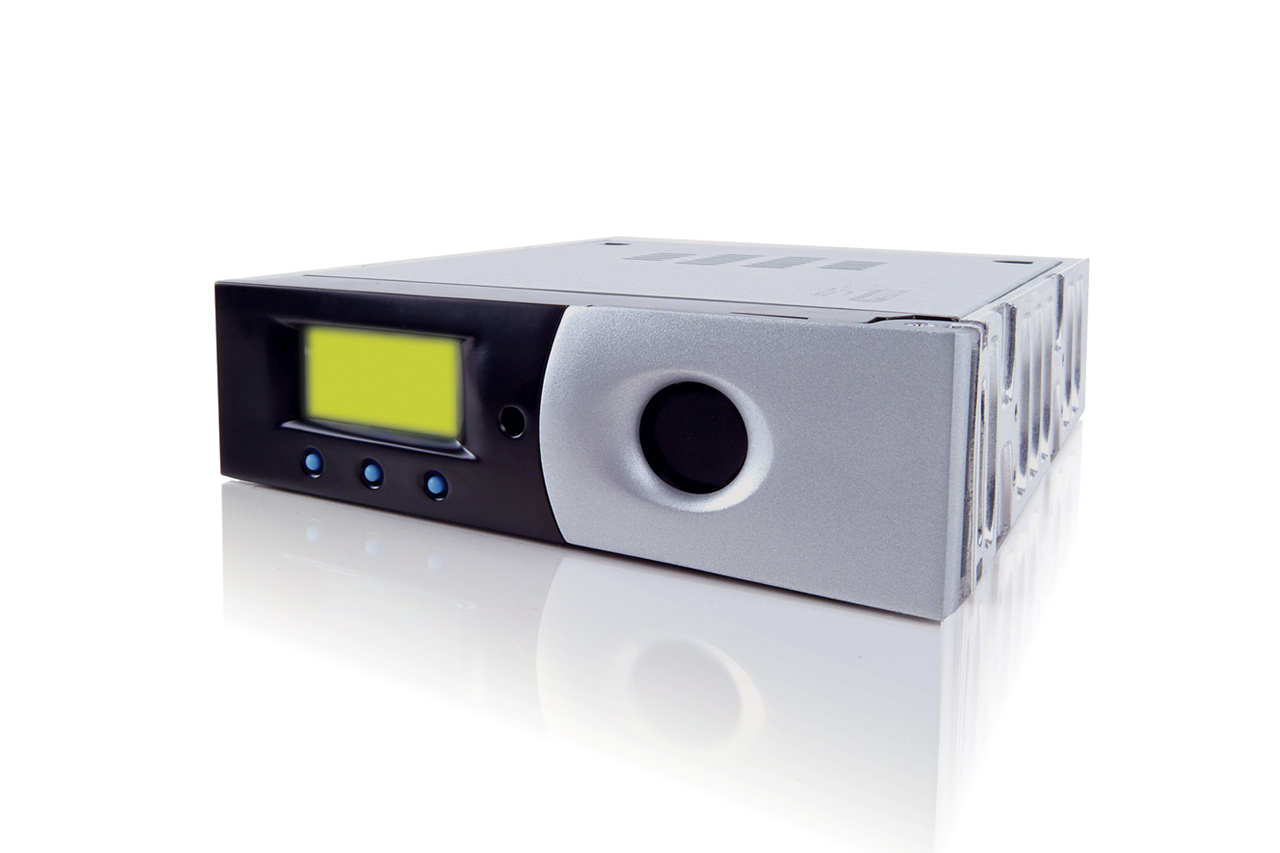

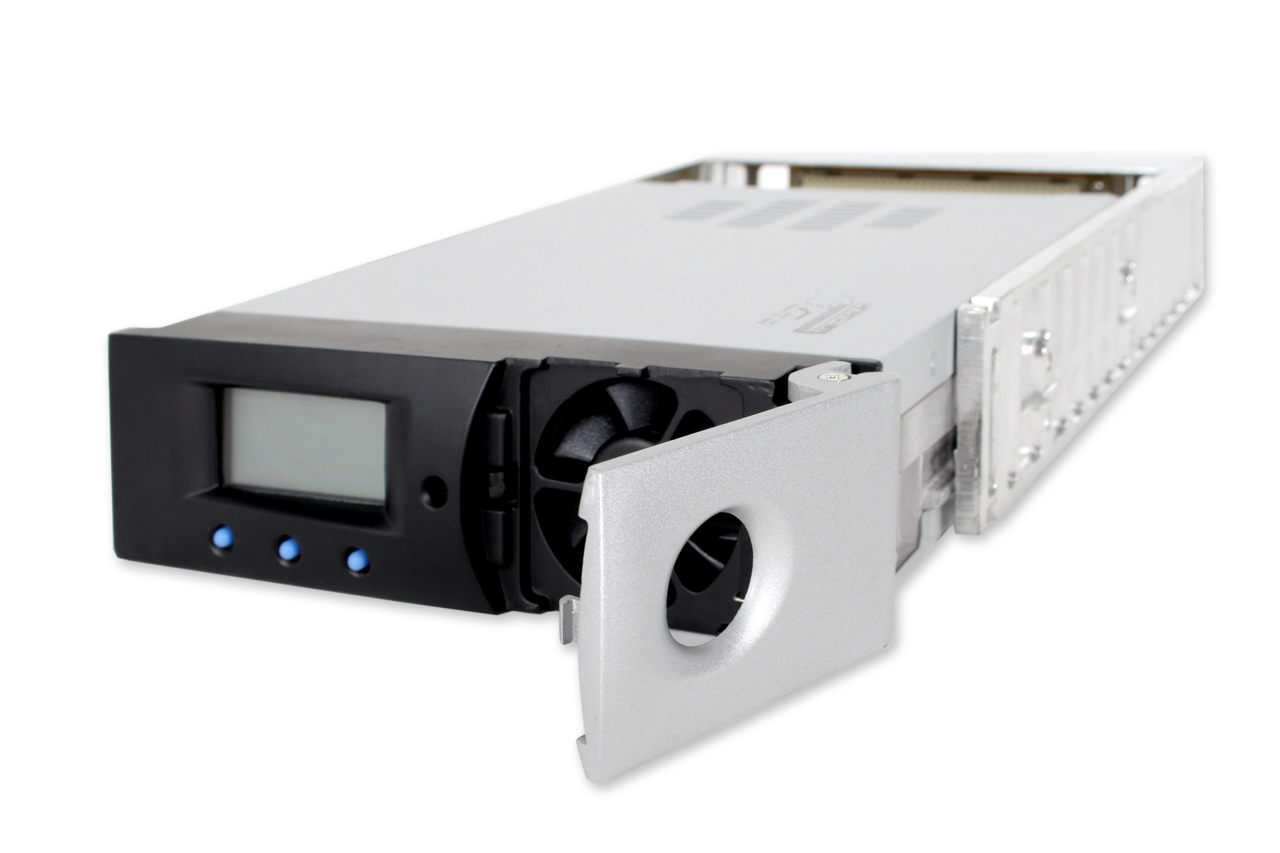

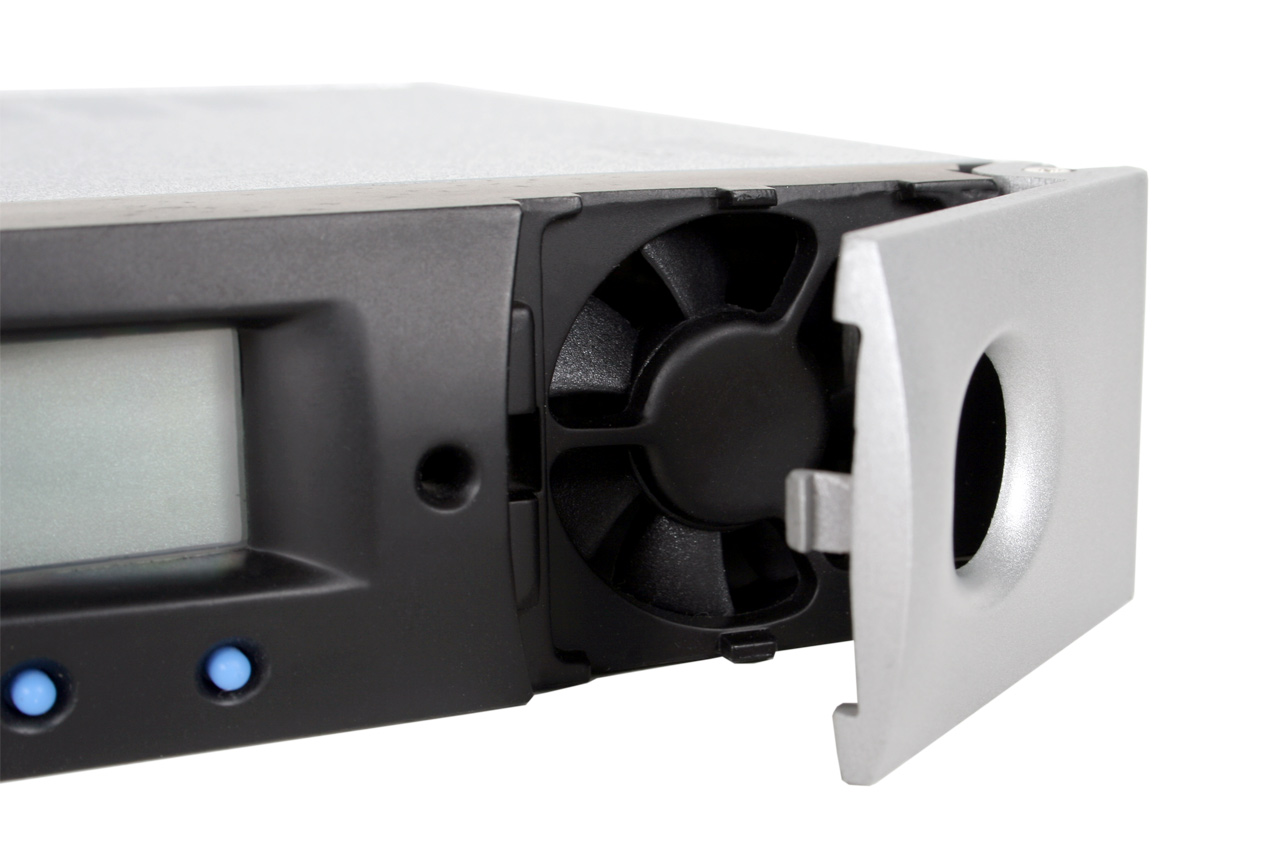

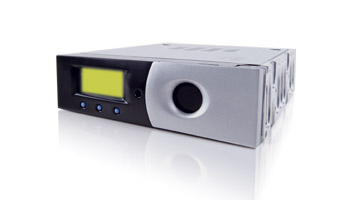

| Sleek, stylish shaped front exterior and built tough, the MB911 Series is capable to withstand the most rigorous use under an industrial environment. Full aluminum built with up to one front intake fan to bring in cool air and one rear outtake fan to extract warm air out of the environment, the unit is superiorly designed if high drive temperature is your biggest concern. Moreover, an advance hard drive monitoring system is equipped that’s capable of detecting any drive overheating, drive, fan failures with visual & audio alarm indications. The visual LCD display readout also provides drive activity, real-time drive temperature, drive positioning status. The front buttons are equipped for you to adjust the temperature that you wish to allow the drive to operate under. If temperature exceeds it, then both the visual & the audio alarms would indicate accordingly for your caution. |
Suggested Applications |
| Industrial PC, server, and various storage system applications requiring storage drive security, exchangeability, expandability, manageability. |
Product Features: |
* Drive Fit : 1 x 3.5" ATA 133 * Device Fit : 1 x 5.25" device bay * Internal drive security, exchangeability, expandability and maintenance capabilities * Advanced drive monitoring system built internally w/ LCD visual & audio indicators * Stylish front with full aluminum built cooling body * Up to one cool air intake and one warm air outtake fans cooling of drive * Accessible IDE Master/Slave setting thru the drive tray without having to physically remove the drive |
Models & Specifications
|
| Item Number: Beige | MB911APGF |
|
| Item Number: Black | MB911APGF-B |
|
| Internal Host | 40 pin IDE |
|
| Drive Fit | 1 x 3.5” ATA 133 |
|
| Drive Bay | 1 x 5.25” |
|
| Transfer Rate | 133 MB/sec. |
|

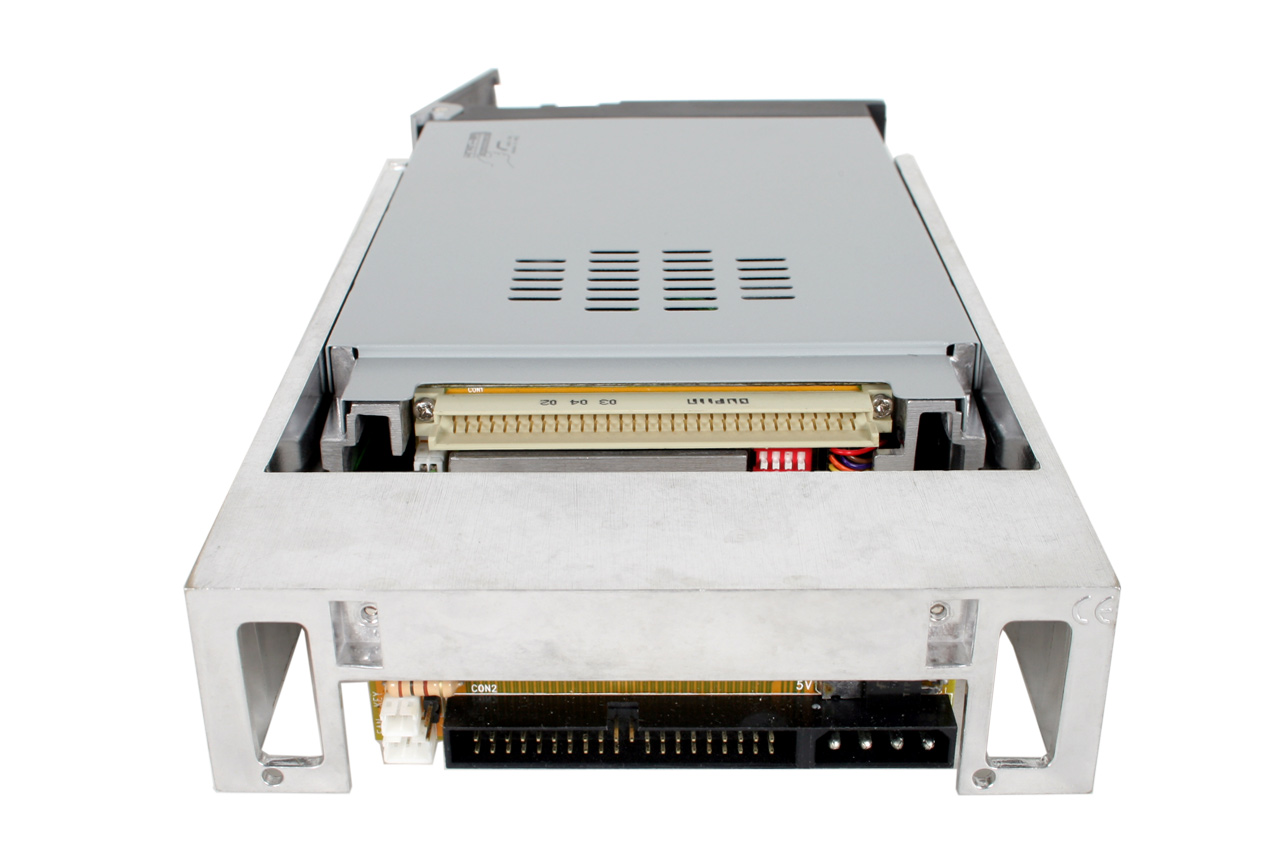

| Insert & Extract connection Via | 64 pin industrial DIN converter |
|
| Structure | Full Aluminum
|
|
| Drive Cooling | Rear outtake fan w/ aluminum
heat dispersion
|
|
| Alarm Indication | Audio & Visual |
|
| LED Indication | Real-time drive temp., Drive
activity/overheat/MASTER/SLAVE status, Fan working/failure status,
Device usage time record |
|
| LED Display Color | Bright Yellow |
|
| Drive Security | Securable key
lock |
|
| Dimension (L x W x H) | 235.5 x 146.0 x 128.0 mm |
|
| Weight | 2.20 lbs. |
|
