ICY DOCK reminds you:
The SATA hard drive tray of MB452UK-1S is only compatible with MB123UK Series.

The LCD drive tray (MB122ARCK-B) shown in image is an optional drive tray, it can be purchase separately.





Buy now at :
  BUYWEE "On Sale" NEWEGG


Please Click Icon for Icon Description



Compatible with:

  Product Supports


* When using the enclosure, if the drive doesn’t show in “My Computer”, there might be two issues.

1. You are probably using a brand new hard drive. You can initialize, partition, and format unrecognized drives using Disk Management.
Please click HERE to view the instructions to initialize, partition, and format unrecognized drives using Disk Management.

2. Your drive letter may be over lab with other drive by the system. Please go to the Disk Management and go “Change Drive Letter and Paths…” and select another letter for the drive.
Please click HERE to view the instructions to “change the drive letter and paths”


Available Colors: Black, Beige

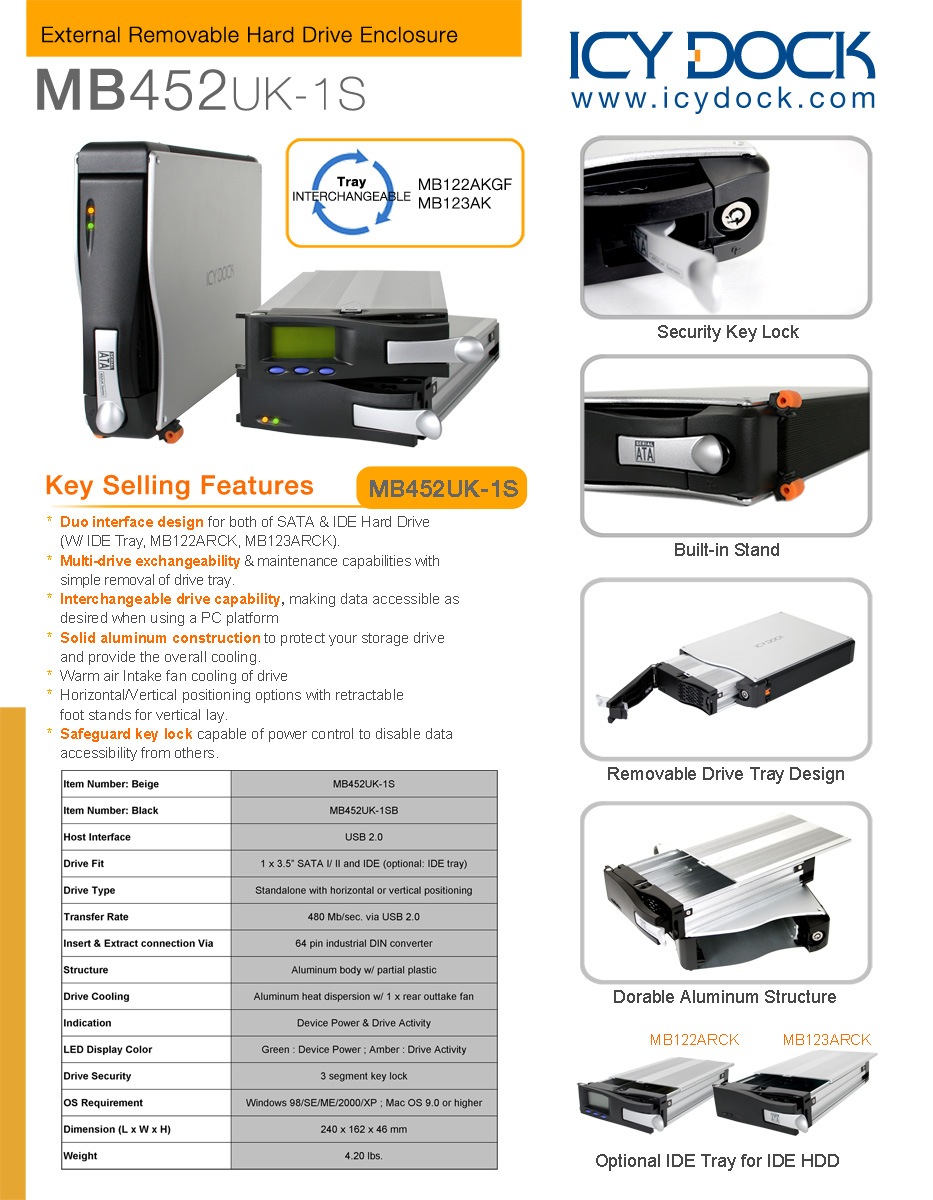

Product Description:
Understanding the difficulties to get your massive data from a laptop to a desktop or vice versa, ICY DOCK has creatively developed the MB452 series with a removable tray that's compatible with the ICY DOCK's MB123UK Series that allows storage drive interchangeabilities between laptop and desktop platforms. With its sleek exterior, solid construction, the MB452US-1S series is one of the most convenient storage devices that enable multiple drive accessibility utilizing one simple external housing. No more clumsy installation procedures in creating a time efficient storage environment! Also, the storage drive security feature utilizes a power control locking mechanism that allows users to both power down and lock up the storage drive, making it both inaccessible and unobtainable to keep the drive fully secured and safe.

Suggested Applications
Add-on data/media files storage to laptops, graphics & video editing, on field imaging from surveillance DVR recordings, interchange of data between corporate/school/home workstations, data file backups.

Product Features:

* Plug & Play USB 2.0 quick connection for any computer system.
* Duo interface design for both of SATA & IDE Hard Drive (optional IDE tray).
* Multi-drive exchangeability & maintenance capabilities with simple removal of drive tray.
* Interchangeable drive capability, making data accessible as desired when using a PC platform.
* Built with 40mm warm air out take fan and solid aluminum body constraction
--provide the best cooling & drive protection.
* Horizontal/Vertical positioning options with retractable foot stands for vertical lay.
* Safeguard key lock capable of power control to disable data accessibility from others.

Models & Specifications

Item Number: Beige
MB452UK-1S
Item Number: Black
MB452UK-1SB
Host Interface
USB 2.0
Drive Fit
1 x 3.5” SATA I/ II and IDE (optional: IDE tray)
Drive Type
Standalone with horizontal or vertical positioning
Transfer Rate
480 Mb/sec. via USB 2.0
Insert & Extract connection Via
64 pin industrial DIN converter
Structure
Aluminum body w/ partial plastic
Drive Cooling
Aluminum heat dispersion w/ 1 x rear outtake fan
Indication
Device Power & Drive Activity
LED Display Color
Green : Device Power ; Amber : Drive Activity
Drive Security
3 segment key lock
OS Requirement
Windows 98/SE/ME/2000/XP ; Mac OS 9.0 or higher
Dimension (L x W x H)
240 x 162 x 46 mm
Weight
4.20 lbs.
IDE Hard Drive Tray
MB123ARCK / MB123ARCK-B/ MB123ARCK-S
IDE Hard Drive Tray w/ LCD
MB122ARCK / MB122ARCK-B/ MB122ARCK-S
SATA Hard Drive Tray
MB452SBOX/ MB452SBOX-B/ MB452SBOX-S
