Please Click Icon for Icon Description
Available Colors: Black, Beige
Product Description:

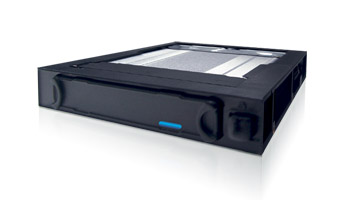

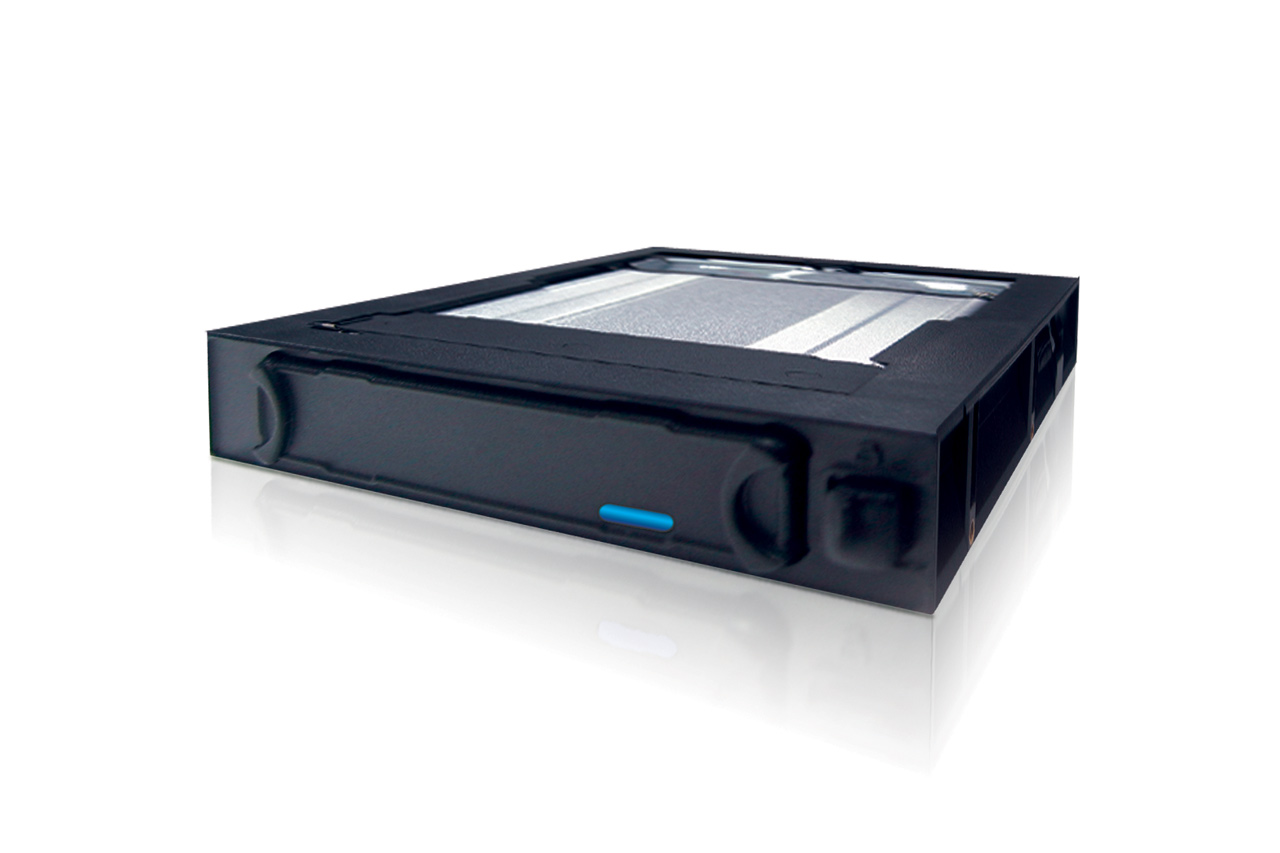

| The MB448 Series is a 2.5” hard drive removable rack that fits into a standard 3.5" drive bay slot usually for floppy disk device if your standard 5.25" drive bays are overwhelmed by CD, DVD or so devices that you are unable to fit other storage drive devices into your system. Conforming to the idea of a 5.25" removable drive rack, the slim device keeps security, exchangeability, expandability, manageability available without sacrificing the needs of your 5.25" drive bays. Moreover, this series has options that are capable to be used both internally & externally. This means instant swap of cartridge transforming into a portable storage drive in seconds! The series is also excellent for smaller diverse system solution providers whom are confined due to size limitations when integrating removable storage drives. |
Suggested Applications |
| Add-on data/ media files storage to laptops and desktops, DVR systems & on field imaging from surveillance DVR recordings, interchange of data between corporate/school/home workstations, data file backups. |
Product Features: |
* External usage host : Plug & Play USB 2.0 * Drive Fit : 1 x 2.5" ATA 100 * Device Fit : 1 x 3.5" device bay * Light weight aluminum built cooling of storage drive cartridge * Portable external storage utilization capability option * Push & eject for quick extraction of cartridge * Cool blue LED indicator |
Models & Specifications
|
| Item Number: Beige |
MB448AR |
MB448MR |
MB448UR |
| Item Number: Black |
MB4448AR-B |
MB44MR-B |
MB448UR-B |
| Internal Host |
40 pin IDE |
USB2.0 |
|
| External Usage Host |
None available |
USB 2.0 |
|
| Drive Fit |
1 x 2.5” ATA100 |
||
| Drive Bay |
1 x 3.50” |
||
| Transfer Rate |
Internal usage
: 100 100 MB/sec. |
Internal usage
: 100 MB/sec. External usage : 60 MB/sec. |
Internal usage
: 60 60 MB/sec. External usage : 60 60 MB/sec. |
| Insert & Extract connection Via |
Extraction circuit board within cartridge |
||
| Cartridge Structure |
Aluminum body
w/ partial plastic
|
||
| Drive Cooling |
Aluminum heat dispersion |
||
| LED Indication |
Device Power & Drive Activity |
||
| LED Display Color |
Cool Blue |
||
| Drive Security |
Lockable switch when used internally |
||
| Internal Receiver Dimension (L x W x H) |
172.0 x 100.0 x 25.0 mm |
||
| Dimension (LxWxH) |
123.0 x 75.0 x 19.0 mm |
||
| Full Unit Weight |
0.80 lbs |
||
| Cartridge Weight |
0.20 lbs. |
||
| Compatible Cartridge : Beige |
MB448ARCK |
MB448ARCK |
|
| Compatible Drive Tray : Black |
MB448ARCK-B |
MB448ARCK-B |
|
