Für Beschreibung bitte das Symbol anklicken


Available Colors: Schwarz, Beige

Product Description:

Utilizing three 5,25” drive bays in fitting four hard drives, the MB018 Series is sophisticatedly designed yet durable, and is considered to be one of the most high in quality removable hard drive enclosure for industrial PC, server or various storage application integrations. With its full aluminum built cooling body and superb airflow design, the hard drives enclosed within are certain to run comfortably without overheating. Visual & audio alarm indications are also equipped to provide even higher hard drive security standards


Empfohlene Anwendungen:

Storage drives expansion and enabling drive maintenance to industrial PC, server, and various storage system applications.


Produktmerkmale:


* Laufwerke : 4 x 3,5" Hot Swap-fähig 80pin SCSI ULTRA 320 / Hot Swap-fähig SATA I or II
* Device Fit : 3 x 5,25" device bays
* Optional intake Lüfter with lockable door & SCSI drive ID unit available
* Compact and space saving for multiple drive fit
* Equipped with daisy chainable connections
* Internal drive security, exchangeability, expandability and maintenance capabilities
* Full aluminum built cooling with superb airflow design
* Advanced drive monitoring system built internally mit visual & audio indicators


Modelle & Spezifikationen

Where to buy:

Item Number: Beige
MB018CPF

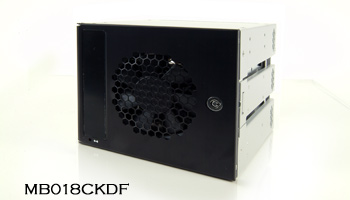

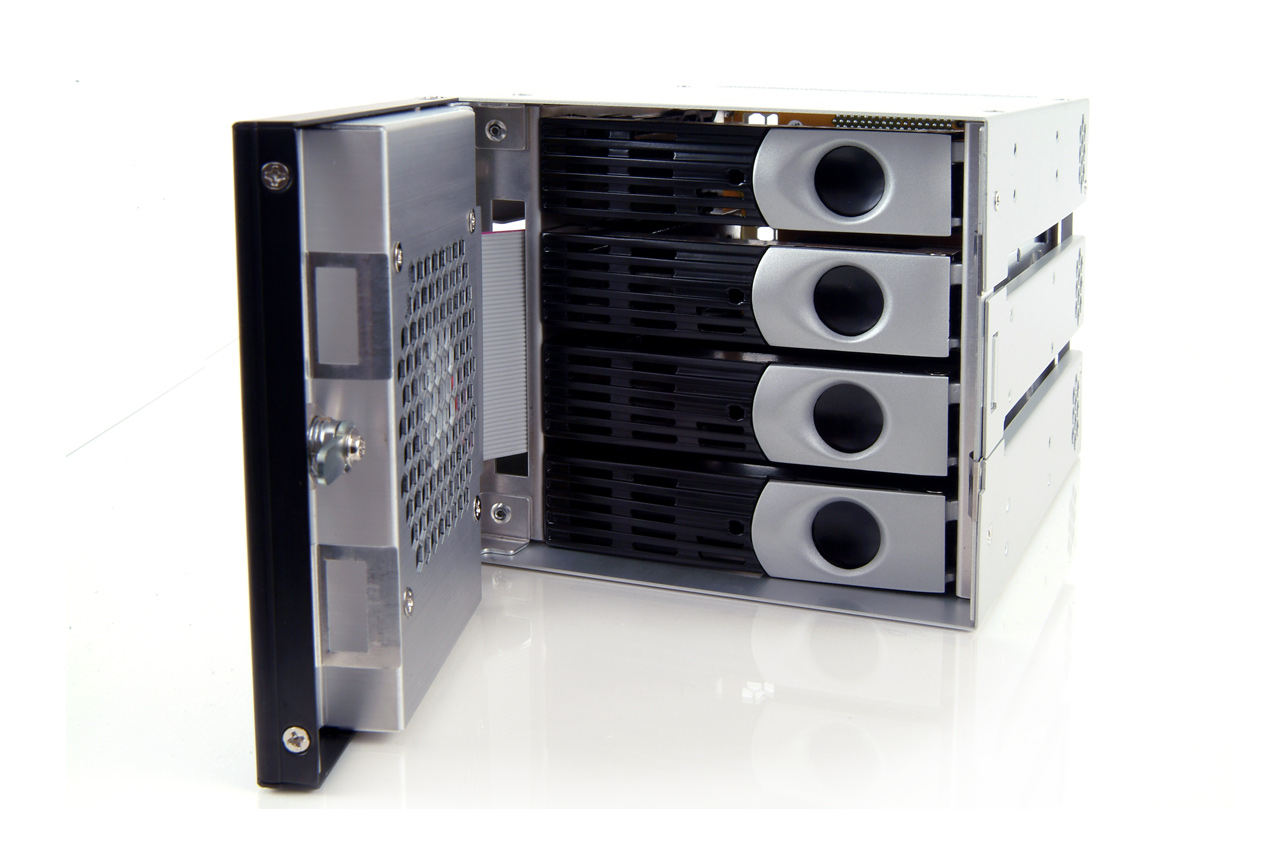

MB018CKDF

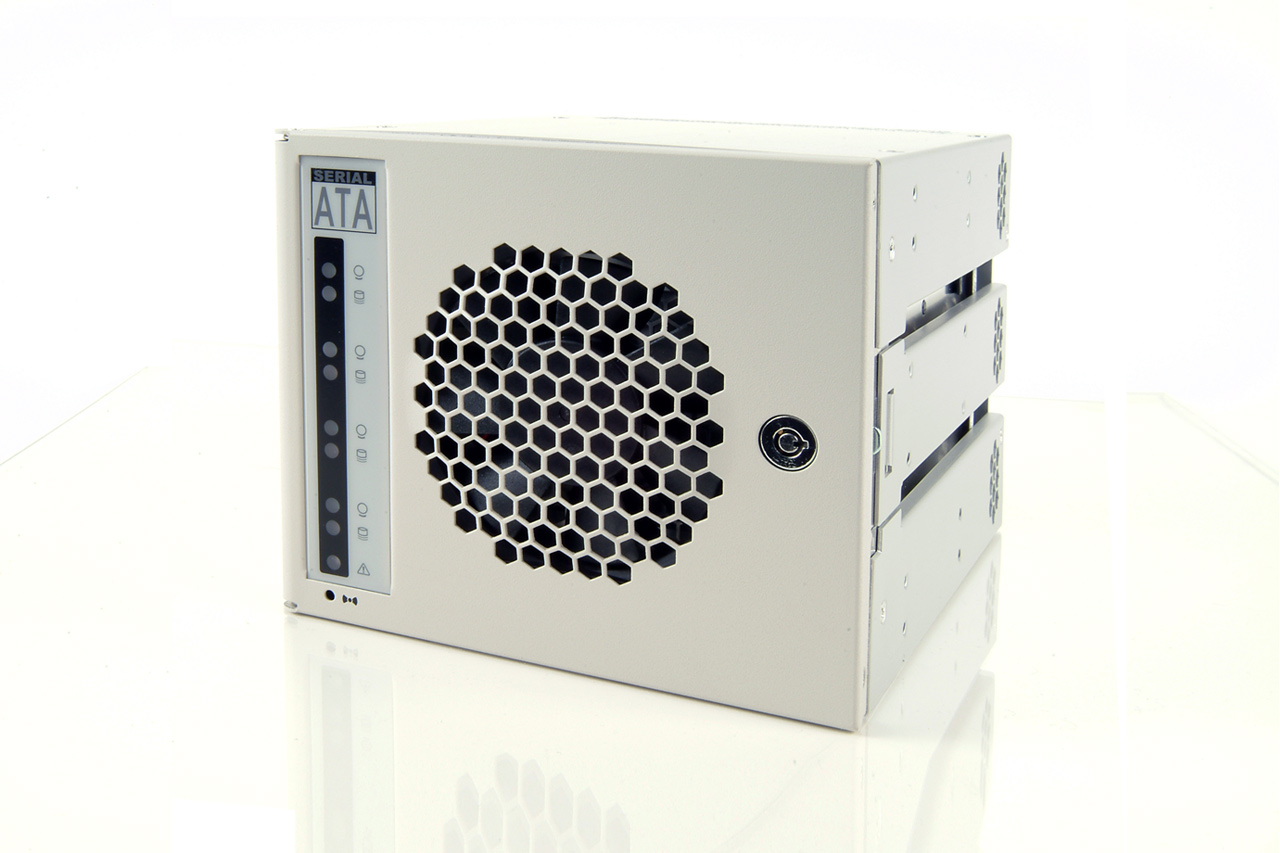

MB018SKF
Artikelnummer: Schwarz
MB018CPF-B
MB018CKDF-B

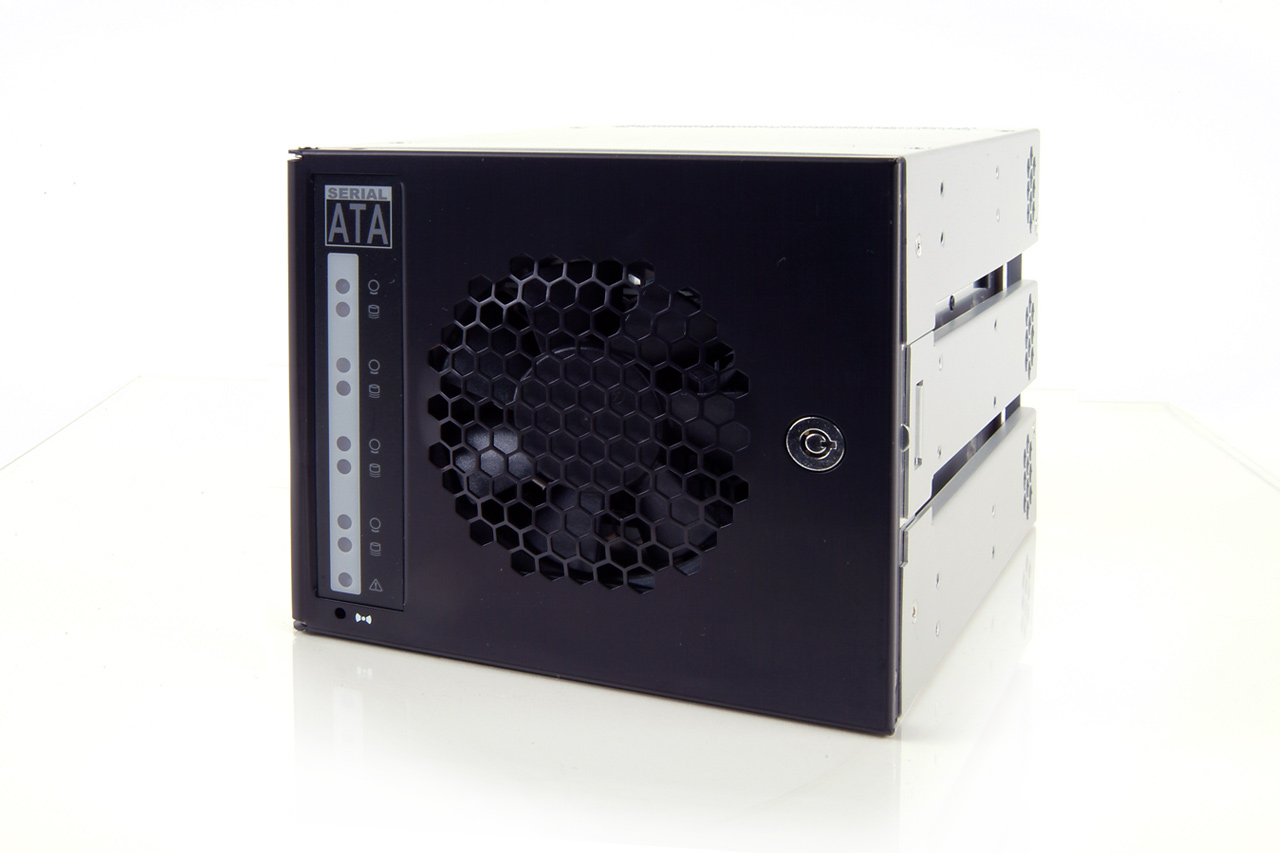

MB018SKF-B
Interner Anschluss
68 pin SCSI converting to 80 pin SCSI
7 Pin SATA
Laufwerke
4 x 3.5” 80 pin SCA
4 x 3,5” SATA I / II
Drive Bay
3 x 5,25”
Transfer Rate
ULTRA 320
1.5Gb/Sek.
Interner Laufwerksanschluss
80 pin SCA direct hard drive connection
15 Pin Direktanschluss der Festplatte
Material
Full Aluminum
Drive Cooling
Wärmeableitung über Aluminium mit rear ventilation for superb airflow
Front intake Lüfter mit aluminum heat dispersion plus rear ventilation for superb airflow
Alarm
Visual
Akustisch & visuell
LED Indication
Laufwerksaktivität / Überhitzung / Störung
SCSI Drive ID, Laufwerksaktivität/Überhitzung/Betriebsstörung, Lüfter Betrieb/Fehler Status
Laufwerksaktivität/Überhitzung/Betriebsstörung, Lüfter Betrieb/Fehler Status
LED Display Color
Grün : Eingeschaltet ; Orange : Laufwerksaktivität / Überhitzung / Störung ; Rot : Laufwerksstörung
Laufwerkssicherheit
Verriegelung von Laufwerkseinschub
Front door mit key lock
Abmessungen (L x B x H)
192.0 x 146.0 x 128.0 mm
222.3 x 146.0 x 128.3 mm
Gewicht
3.00 lbs.
3.80 lbs.
2.30 lbs
